Understanding Your Car’s Under Hood Fuse Box: A Essential Guide

The under hood fuse box, often overlooked yet crucial, plays a vital role in your vehicle’s el[...]

The under hood fuse box, often overlooked yet crucial, plays a vital role in your vehicle’s electrical system. Located beneath the car hood, usually near the engine, this compact box houses fuses that protect various electrical components from power surges. Understanding its function and how to maintain it can save you from unexpected breakdowns and costly repairs.

What Is an Under Hood Fuse Box?

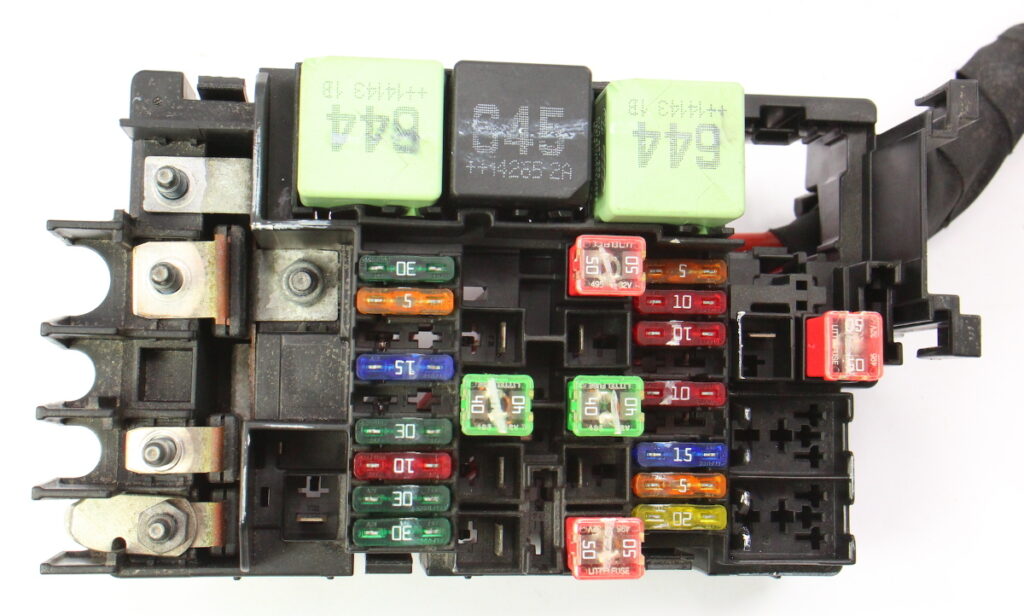

The under hood fuse box is a protective unit containing blade-type fuses, mini-fuses, or maxi-fuses. These fuses are designed to “blow” or break the circuit when an excessive electrical current flows through, preventing damage to sensitive components like the engine control module, headlights, windshield wipers, and air conditioning system. Each fuse corresponds to a specific electrical system, clearly labeled in the fuse box diagram (usually found on the fuse box cover or in your vehicle owner’s manual).

Locating Your Fuse Box

Finding the under hood fuse box is straightforward. Most vehicles place it in a rectangular or square plastic casing with a latch or clips. Common locations include near the battery on the driver’s side or passenger’s side. If unsure, consult your owner’s manual for precise positioning. The box cover will have a diagram mapping each fuse to its respective component, using numbers and symbols to indicate amperage ratings (e.g., 10A, 15A, 30A).

Inspecting and Replacing Fuses

When an electrical component malfunctions—such as headlights failing or the radio not working—start with fuse inspection:

Safety First: Turn off the vehicle and disconnect the battery if working near it to avoid electrical shocks.

Open the Fuse Box: Use the latch or clips to remove the cover and locate the diagram.

Identify the Faulty Fuse: Compare the component’s issue with the diagram to find the corresponding fuse. Pull it out using the fuse puller (usually stored in the fuse box or glove compartment). Inspect for a broken metal strip—if broken, it needs replacement.

Replace Correctly: Use a fuse with the same amperage rating. Insert it firmly into the socket until it clicks.

Maintenance Tips

Regular Checks: Inspect fuses during routine maintenance, especially before long trips, to catch potential issues early.

Spare Fuses: Keep a set of spare fuses in your car, matching the amperage ratings in your fuse box.

Clean the Box: Periodically clean the fuse box with a dry cloth to remove dust and debris that could cause electrical resistance.

Understanding your car’s under hood fuse box empowers you to handle minor electrical issues confidently. While it’s a simple component, its proper functioning is essential for your vehicle’s overall electrical health. By knowing how to locate, inspect, and replace fuses, you can often resolve problems quickly without visiting a mechanic, saving both time and money. Always refer to your owner’s manual for vehicle-specific details, and when in doubt, consult a professional to ensure safety and accuracy.
